VERANSYS SHADING & GLAZING SYSTEMS / BY ARTREX

Guillotine Glass Systems

Guillotine Glass Systems

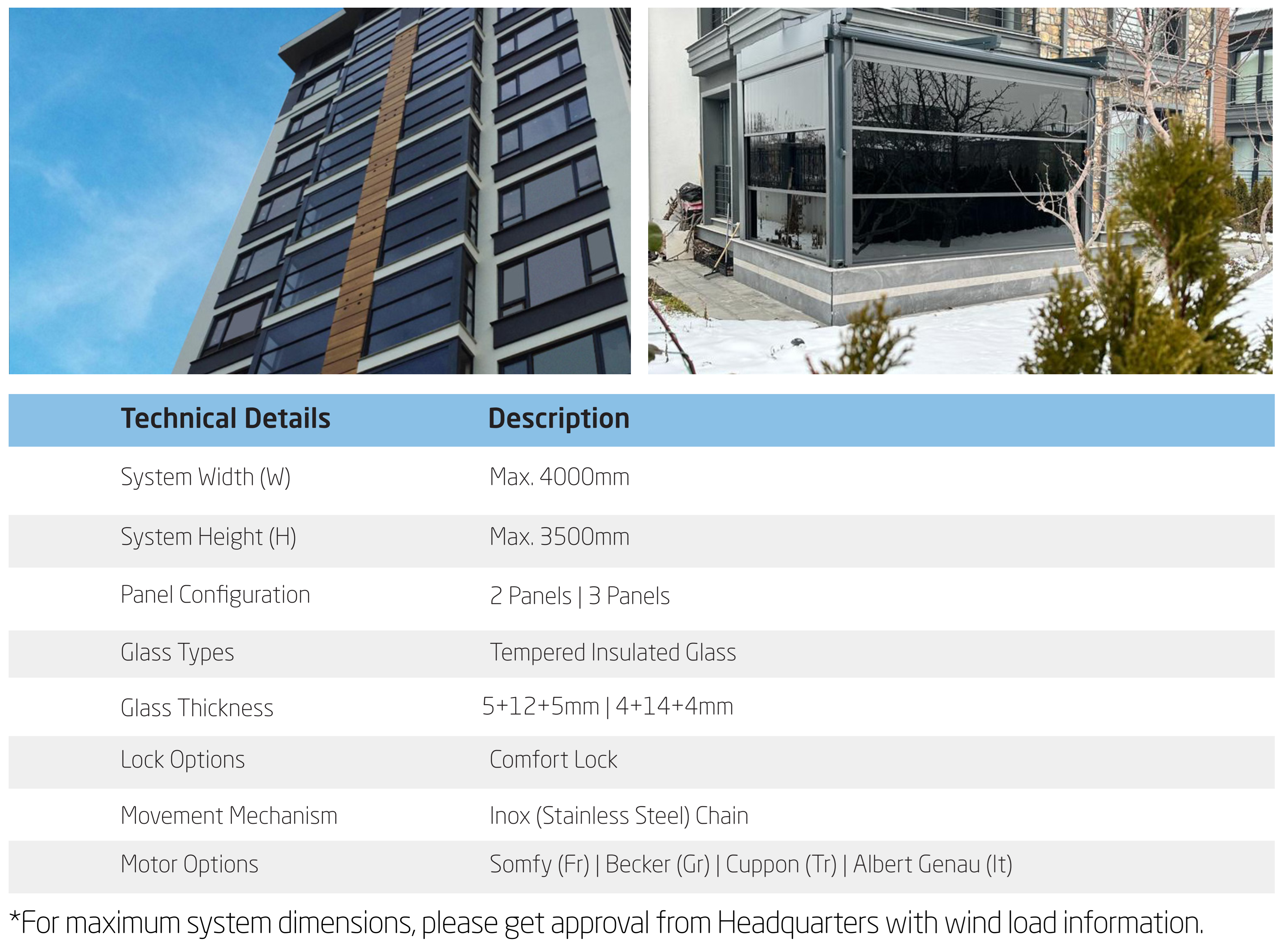

Cleanable Motorized Guillotine System

VERTIFLEX ALL CLEAN

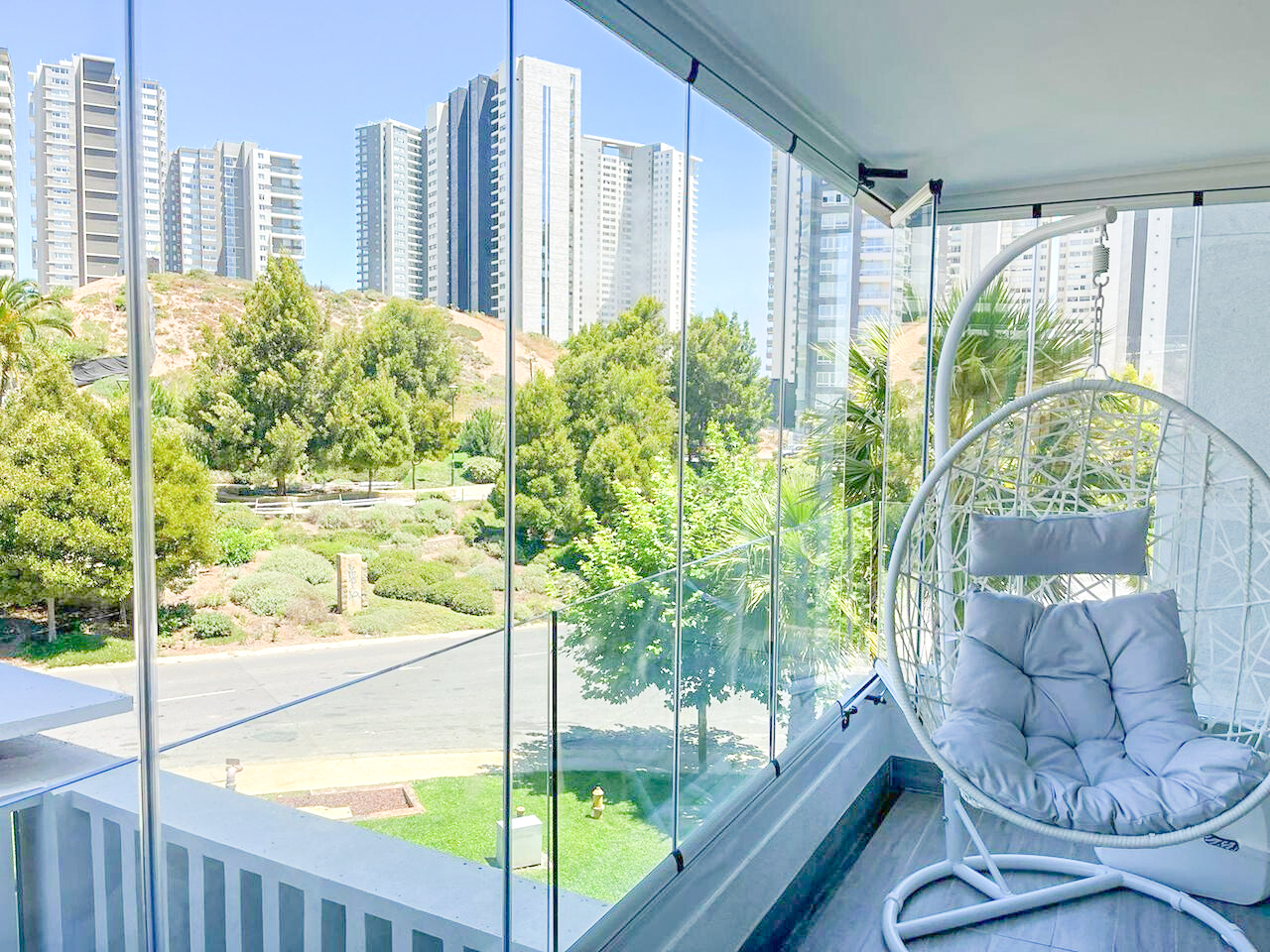

Patented design. Unlike a traditional glass balcony, Vertiflex All Clean is a fully automatic, remote-controlled, 100% wipeable glazing system. Glass panels can be opened or closed with a remote control. When opened, the system does not take up any space on the balcony and also serves as a balcony railing. It is perfect for highrise locations that require easy cleaning without taking up space and can be integrated into other systems. Enjoy lifetime comfort with the stainless chain used in the system.





Most Prestigious 4 Design Awards to Tambalkon!

Vertiflex All Clean has been awarded with iFdesign, Red Dot, Good Design and Golden Plumb, one of the most prestigious awards in Europe!



European Test Certified, The first guillotine system!

Vertiflex All Clean was subjected to waterproof, airtightness, impact resistance, wind load tests at the European Approved PfB Technical Institute and achieved high class results according to European Union norms.





Patented, Safe Cleaning System Finger Trap Prevention Handrail!

VertiFlex All Clean has been specially designed for safe use and cleaning. There is no need to hang out, climb the stairs, or go between the glass for cleaning. Put the panels in cleaning mode. Clean comfortably, easily, and safely. The system is even safer with its special movable handrail profile that prevents finger jamming!





Full Isolation, Full Aesthetics; Full Panoramic, Full Security!

Vertiflex All Clean provides the highest level of security with its special design and locking mechanisms. The system ensures continuous maximum water, air, and heat insulation through the application of EPDM seals and brush gaskets on all profiles. Thanks to the patented G-Motion system, Vertiflex All Clean moves quietly and smoothly. Additionally, its full panoramic design allows for uninterrupted view enjoyment.







Motorized Guillotine System

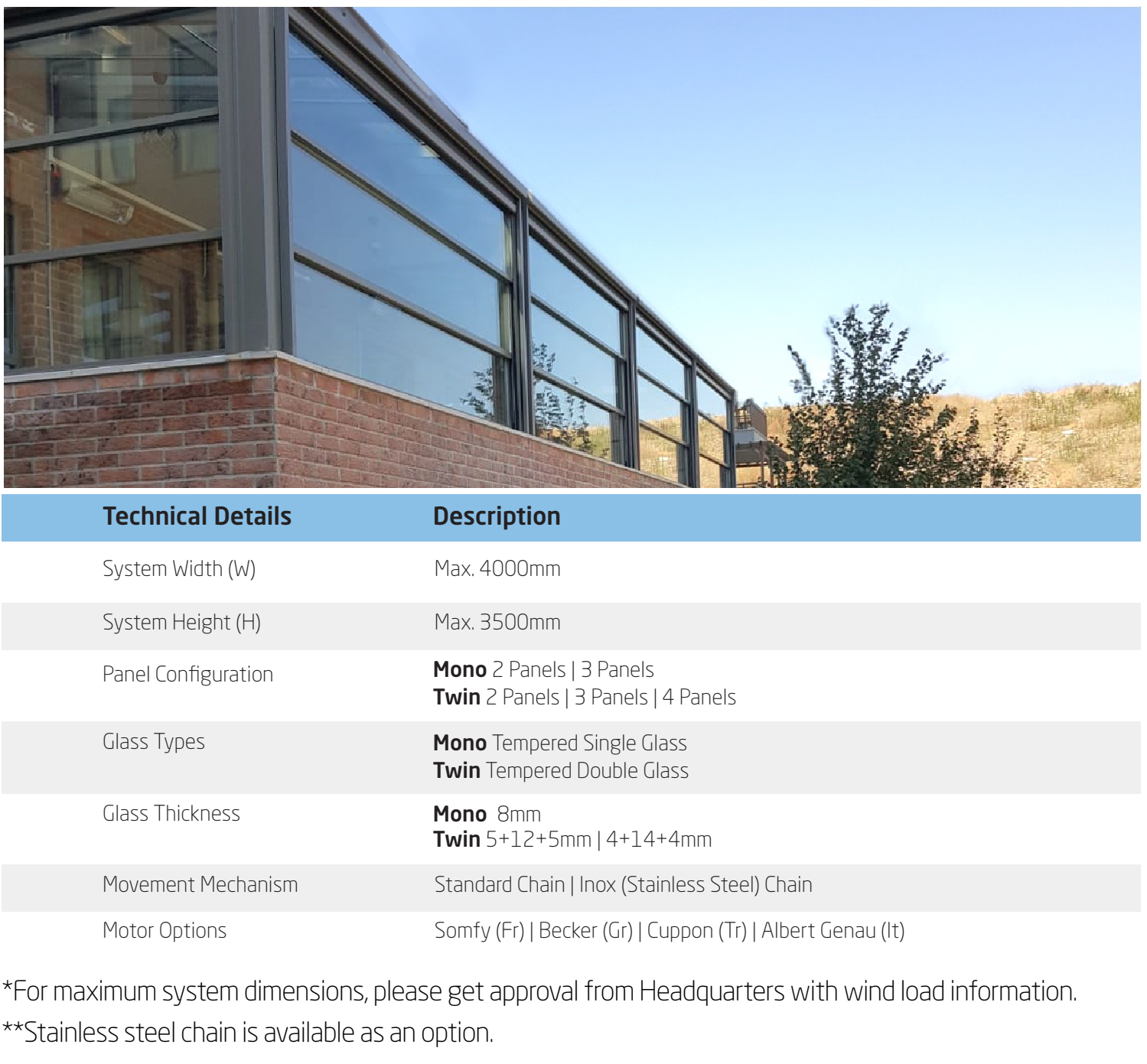

VERTIFLEX MONO 08 / TWIN

VertiFlex is a remote-controlled, motorized, chained, movable handrail system. This versatile system is highly preferred for opening and closing spaces in hotels, cafes, restaurants, stadiums, and other similar venues.



Many patented innovations in automatic guillotine glass systems, such as the safety system that prevents hand and finger entrapment, are exclusive to VertiFlex. The system can be configured with 8 mm or 10 mm glass, or with insulating glass, providing the highest level of insulation achievable in guillotine glass systems.



In the VertiFlex Automatic Guillotine Glass System, a motor manufactured in Italy with a 5-year warranty is offered as standard. A Somfy motor can also be used upon request.





No More Obstacles to Your View!

By minimizing the thickness of the vertical and horizontal profiles in VertiFlex automatic guillotine systems, the transparency level of the system is increased and maximum panoramic view is provided.



Flexible solutions  for your unique space,

Vertiflex offers frameless, top-assembled, 2-3, or 4-paneled configurations as desired. It provides comprehensive solutions on a single system platform to meet all need.





Movable Handrail,

The movable handrail profile is designed to prevent potential hand and finger entrapment during the system’s opening and closing operations.



European Test Certificated Motorized Guillotine System!

VertiFlex has undergone waterproof, airtightness, impact resistance, and wind load tests at the PFB Technical Institute, a European Approved Independent Test Institution. It has achieved high ratings according to European Union norm.



Maximum Insulation, Highest Levent of Security!

Maximum insulation is achieved by utilizing EPDM gaskets and bristle brushes in all profile and panelprofile joints. Additionally, the system ensures the highest security through its special design and locking mechanisms.
